Authentication and Authorization

Part 3 of 3: Azure Static Web Apps – Blazor Web Assembly Front End and C# Azure Functions Backend – Local Development First Method

The purpose of this 3-Part article is to describe the steps necessary to setup an Azure Static Web Apps application from scratch creating a development environment first using Blazor Web Assembly Client Front end and C# Http Functions back end. All of this will be done in Visual Studio where we can debug both the Client and API at the same time all the while using nearly purely C# for Client and Back End programing.

Azure Static Web Apps is a very flexible and powerful tool on Azure. You can mix and match different frontend frameworks with many different backend frameworks. This series will focus on using C# for both the Frontend and Backend.


      • A GitHub Account
      • An Azure Account
      • Visual Studio 2022 (Community Edition will be just fine)
      • Nodejs and NPM installed

Part 3 – Authentication and Authorization

According to Microsoft: “Azure Static Web Apps provides a streamlined authentication experience. By default, you have access to a series of pre-configured providers, or the option to register a custom provider… The preconfigured Azure Active Directory provider allows any Microsoft Account to sign in. To restrict login to a specific Active Directory tenant, configure a custom Azure Active Directory provider. ” (https://docs.microsoft.com/en-us/azure/static-web-apps/authentication-authorization). Furthermore, they explain that if you want to do a custom provider you will need to upgrade your plan from the free version to the Standard Plan. (https://docs.microsoft.com/en-us/azure/static-web-apps/authentication-custom?tabs=aad). For now, we will focus on the free AAD preconfigured tenant, and using the authentication in our local development environment.

Important Auth URLs

When the application is deployed in Azure, or the Azure Static Web Apps CLI is running, there are some system routes that have been created. The ones that we will be focusing on are

    • /.auth/login/aad
    • /.auth/me
    • /.auth/logout

We will also be discussing the importance of the following HTTP header that is added when accessing HTTP Triger Functions:

    • x-ms-client-principal

Add a Custom Authentication State Provider to the Client Application

As of this writing the steps necessary to have your Blazor app know what to do with that the /.auth/me end point are not specified so we will be combining the information available on these three documents to come up with our solution:

The first thing that we should do is:

    1 – create a shared class library that both the client and server will use. We will also want to develop this on its own branch.

    2 – Go to the git changes tab and pull all of the latest changes and delete your named_branches branch if it is still there.

    3 – Create a new branch based off of master called “add_authentication”.

    4 – Switch to the solution explorer and switch to the solution view instead of the folder view if you are still in the folder view.

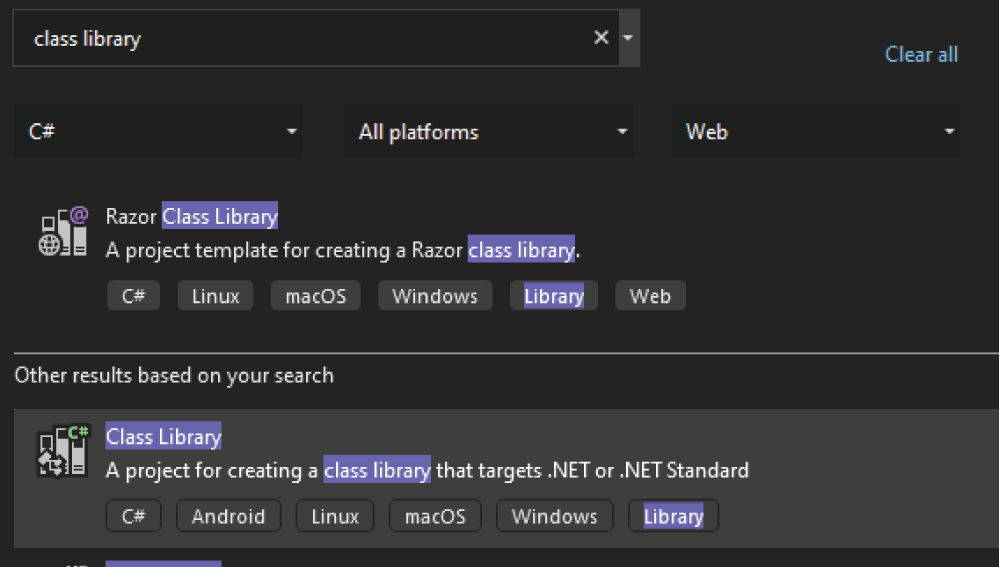

    5 – Do a right-click on the Solution and select Add -> New Project

    6 – Select the C# project that targets .NET or .NET Standard

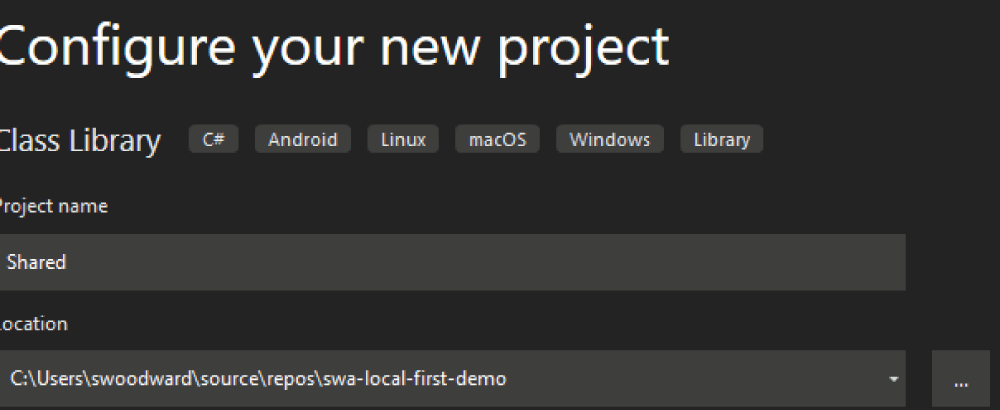

      7 – Call the project name “Shared”
      8 – Click on Next and Create

      9 – When the Shared project appears delete the Class1.cs file

      10 – Create a new folder called “Models” within the Shared project.

      11 – Create a new file class in the Models folder called ClientPrincipal.cs.

Give it the following code:

using System.Security.Claims;

namespace Shared.Models
    public class ClientPrincipal
        public string IdentityProvider { get; set; } = null!;
        public string UserId { get; set; } = null!;
        public string UserDetails { get; set; } = null!;
        public IEnumerable<string> UserRoles { get; set; } = null!;
        public IEnumerable<ClientPrincipalClaim>? Claims { get; set; } = null!;

    public class ClientPrincipalClaim
        public string Typ { get; set; } = null!;
        public string Val { get; set; } = null!;

      12 – Create a new folder called “Extensions”

      13 – Create a new file in the Extensions folder called “ClientPrincipalExtensions.cs”

Give it the following code:

using Shared.Models;
using System.Security.Claims;

namespace Shared.Extensions
    public static class ClientPrincipalExtensions
        public static ClaimsIdentity ToClaimsIdentity(this ClientPrincipal clientPrincipal)
            var claimsIdentity = new ClaimsIdentity(clientPrincipal.IdentityProvider);

            claimsIdentity = new ClaimsIdentity(clientPrincipal.IdentityProvider);

            claimsIdentity.AddClaim(new Claim(ClaimTypes.Name, clientPrincipal.UserDetails));
            claimsIdentity.AddClaim(new Claim(ClaimTypes.NameIdentifier, clientPrincipal.UserId));

            claimsIdentity.AddClaims(clientPrincipal.UserRoles.Select(r => new Claim(ClaimTypes.Role, r)));

            if(clientPrincipal.Claims is not null)
                foreach (var claim in clientPrincipal.Claims)
                    claimsIdentity.AddClaim(new Claim(claim.Typ, claim.Val));

            return claimsIdentity;
We have set this up this way so that when we get the claims principal which will either come from /.auth/me, or the x-ms-client-principal header for server functions that we will be able to convert that Client Principal to a ClaimsIdentity, and then the client can convert that ClaimsIdentity to a ClaimsPrincipal.

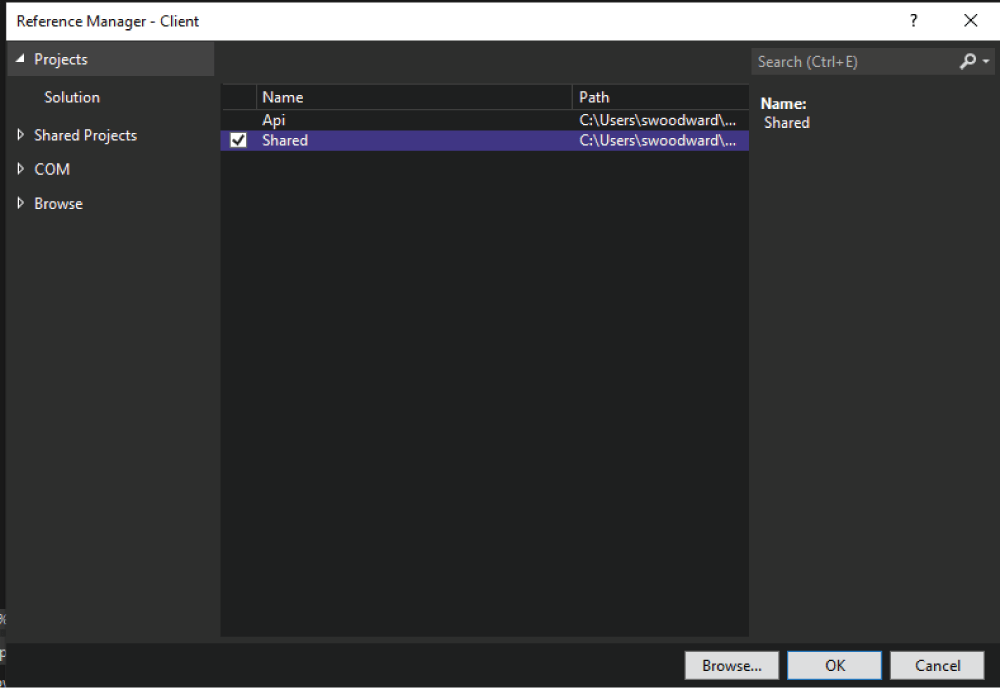

To the Client project — go to Dependencies and add a Project Dependency and select the Shared class library.

Right click on the Client project and select manage nuget packages.

Add the “Microsoft.AspNetCore.Components.Authorization” package.

To the root of the Client project add a new class called “CustomerAuthenticationStateProvider.cs” and give it the following code:

using Microsoft.AspNetCore.Components.Authorization;
using Shared.Extensions;
using Shared.Models;
using System.Net.Http.Json;
using System.Security.Claims;

namespace Client
    public class CustomerAuthenticationStateProvider : AuthenticationStateProvider
        private readonly HttpClient _httpClient;

        public CustomerAuthenticationStateProvider(HttpClient httpClient)
            _httpClient = httpClient;

        public override async Task<AuthenticationState> GetAuthenticationStateAsync()
            var claimsIdentity = new ClaimsIdentity();

            var response = await _httpClient.GetFromJsonAsync<ClientPrincipalPayLoad>("/.auth/me");

            if (response is not null)
                if (response.ClientPrincipal is not null)
                    claimsIdentity = response.ClientPrincipal.ToClaimsIdentity();

            var claimsPrincipal = new ClaimsPrincipal(claimsIdentity);

            var authenticationState = new AuthenticationState(claimsPrincipal);

            return authenticationState;

        private class ClientPrincipalPayLoad
            public ClientPrincipal? ClientPrincipal { get; set; }
A lot is going on here, so let’s discuss this for a moment.

To begin we are inheriting from the AuthenticationStateProvider class. Inheriting from that forces us to override a GetAuthenticationStateAsync method. In order for us to fulfill the requirements of this method we are going to make an http request to ‘/.auth/me’ as directed by the Microsoft documentation. The response from that end point is a “ClientPrincipal” which is not the same as a “ClaimsPrincipal”. However, in order for us to provide a valid authentication state we have to give the authentication state a ClaimsPrincipal. So, what we are doing is converting the ClientPrincipal into a Claims Principal. We start off with an empty ClaimsIdentity. If we get a response back from the http end point and that response is not null, then we add claims to that claims identity (using the extension method that we created earlier in the shared project). We then turn the ClaimsIdentity in to a ClaimsPrincipal and then turn that ClaimsPrincipal into an Authentication state and return that authentication state. The private method for ClientPrincipalPayLoad is there to store the HttpResponse from /.auth/me and has one property of ClientPrincipal that may or may not have a ClientPrincipal model in the response.

Now that we have a custom authentication state provider, we need to register it.

Modify your Program.cs file in the Client project to look like this:

using Client;
using Microsoft.AspNetCore.Components.Authorization;
using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;

var builder = WebAssemblyHostBuilder.CreateDefault(args);

builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });


builder.Services.AddScoped<AuthenticationStateProvider, CustomerAuthenticationStateProvider>();

await builder.Build().RunAsync();

Modify Client Views

Now that our application knows to get it’s authentication state by query ‘/.auth/me’, we can now have our application handle the view depending on whether the user is logged in or not.

To the _Imports.razor file in the client project add the following usings at the end of the file:

@using Microsoft.AspNetCore.Authorization
@using Microsoft.AspNetCore.Components.Authorization
To the “Shared” folder inside of the “Client” project (not to be confused with the recently created Shared project). Add a new razor component called “LoginDisplay.razor”.

Give it the following code

@using Microsoft.AspNetCore.Components.Authorization

@inject NavigationManager Navigation

        Hello, @context.User.Identity?.Name!
        <button class="nav-link btn btn-link" @onclick="BeginSignOut">Log out</button>
        <a href="/.auth/login/aad">Log in</a>

    private void BeginSignOut(MouseEventArgs args)
        Navigation.NavigateTo("/.auth/logout", true);
Modify the MainLayout.razor page to give it the following code:
@inherits LayoutComponentBase

<div class="page">
    <div class="sidebar">
        <NavMenu />

        <div class="top-row px-4 auth">
            <LoginDisplay />
            <a href="https://docs.microsoft.com/aspnet/" data-et-target-link="_blank">About</a>

        <article class="content px-4">
This will make it so that LoginDisplay component that you just made will be visible.

To the Apop.razor file (in the root of the Client project).

Modify the code as follows:

    <Router AppAssembly="@typeof(App).Assembly">
        <Found Context="routeData">
            <AuthorizeRouteView RouteData="@routeData" DefaultLayout="@typeof(MainLayout)">
                    @if (context.User.Identity?.IsAuthenticated != true)
                        <p>Please Login To Use This Resource</p>
                        <p role="alert">You are not authorized to access this resource.</p>
            <FocusOnNavigate RouteData="@routeData" Selector="h1" />
            <PageTitle>Not found</PageTitle>
            <LayoutView Layout="@typeof(MainLayout)">
                <p role="alert">Sorry, there's nothing at this address.</p>

The most important change here is the App.razor change that we made. We introduce a new CascadingAuthenticationState component which will use our newly injected CustomAuthenticationState class and let all of our components know the current user state. We can then access the current user state within an AuthorizeView component, and in the Authorized subcomponent we can access the context and the user information as we did on the LoginDisplay component.

But that is not all. We can also know the authentication state in code, and not just the components by injecting the authentication state into the component code and using the injected object.

<b>Update the Index.razor page as follows for an example of this.</b>

@page "/"
@using System.Security.Claims
@using Microsoft.AspNetCore.Components.Authorization

@inject AuthenticationStateProvider _authenticationStateProvider;


<h1>Hello, world!</h1>

Welcome to your new app.


@if(claims.Count() > 0) {
        <dt>Auth Provider</dt>

                @foreach(var claim in claims)
                    <li>@claim.Type: @claim.Value</li>

@code {

    private string? authMessage;
    private string? authProvider;
    private IEnumerable<Claim> claims = Enumerable.Empty<Claim>();

    protected override async Task OnInitializedAsync()
        await base.OnInitializedAsync();
        var authState = await _authenticationStateProvider.GetAuthenticationStateAsync();
        var user = authState.User;

        if(user.Identity is not null && user.Identity.IsAuthenticated)
            authMessage = $"{user.Identity.Name} is authenticated.";
            claims = user.Claims;
            authMessage = "The user is NOT authentifcated.";

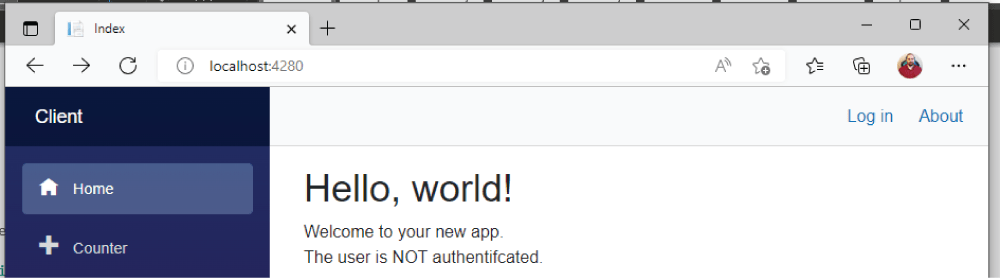

Run the application in development

Ensure that you have your terminal running the npm start and waiting for the client and server to start up and then press F5 in Visual Studio or press the Green play button to start the application up in development. When you first come to the index page you will see that it says that you are not logged in, and also a login button is available in the top right corner.

If you click on login you will be taken to http://localhost:4280/.auth/login/aad/ which is a page hosted by the Azure Static Web Apps CLI.

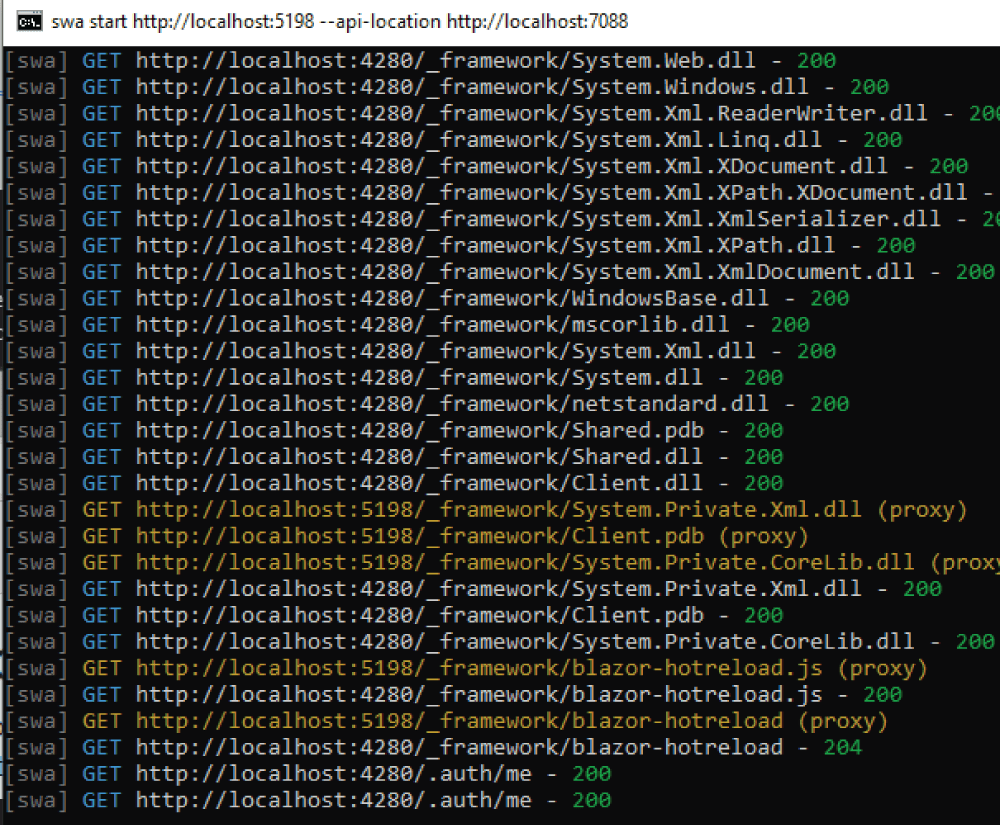

You will also notice that a request to /.auth/me was made as well.

You can manually browse to that page if you like to see the response.

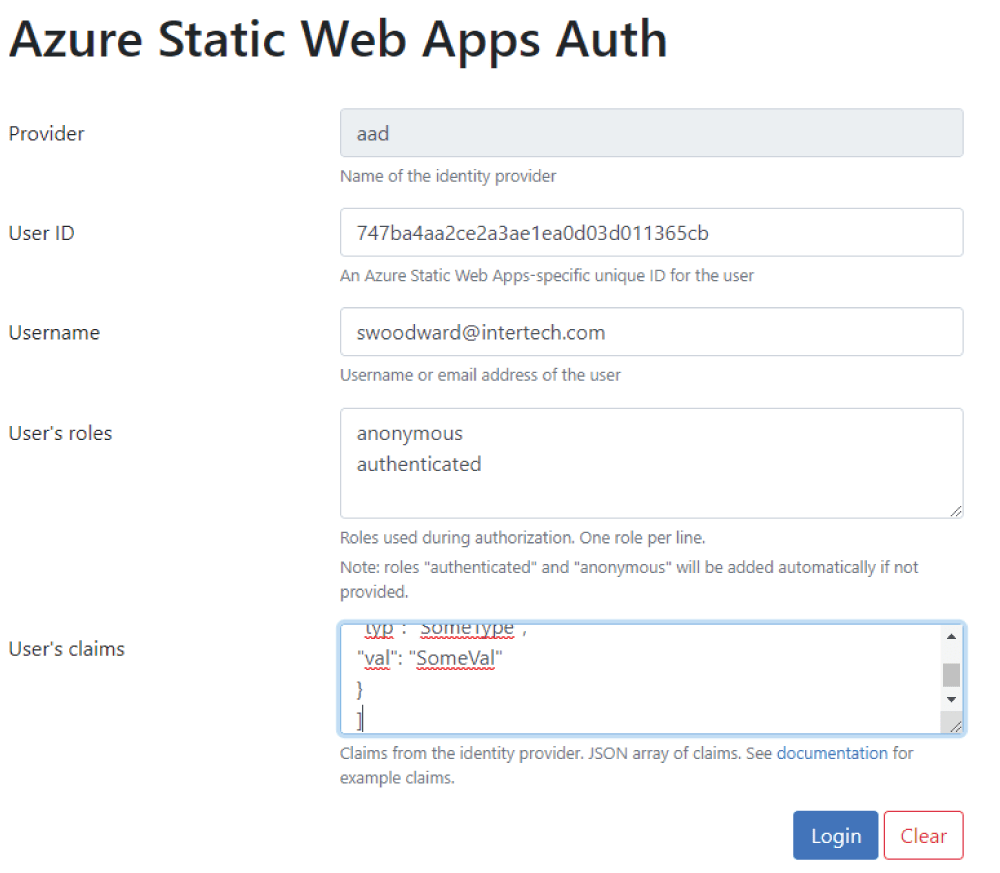

For now go ahead and click on the Log In button. When you are at that page it will allow you to specify a username or email address and give any additional claims that you like.

Enter that information in and click on Login. Doing so will create a ClientPrincipal and makes it so that information is basically echoed back at /.auth/me

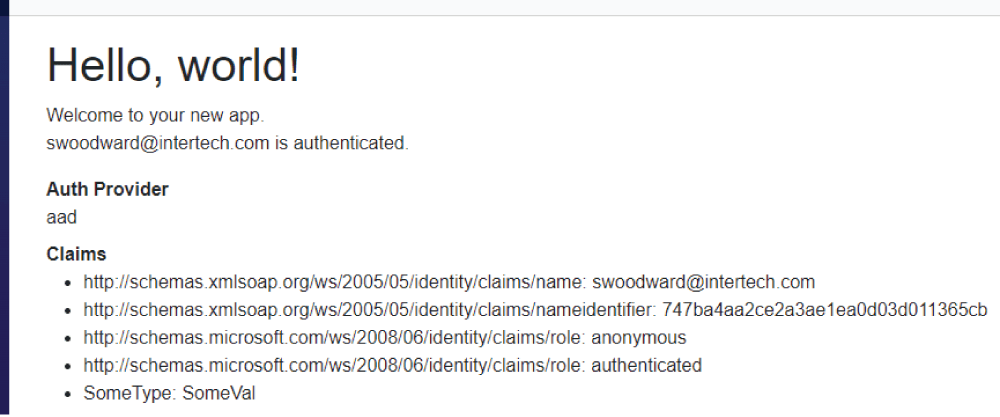

After you are logged in the page will say that you are logged in and list your claims.

With this in place we are now ready to at least deploy to the development branch.

Stop the debuggers.

Use Authentication State with Azure Functions HTTP Triggers

Our goal in this example is to create an endpoint that will give the same details as /.auth/me to our own /api/me route to prove that we can get a claims principal from an x-ms-client-principal HTTP Request Header.

Open the Api project from the solution explorer. Do a Right-Click on the “Dependencies” node and select “Add Project Reference”.

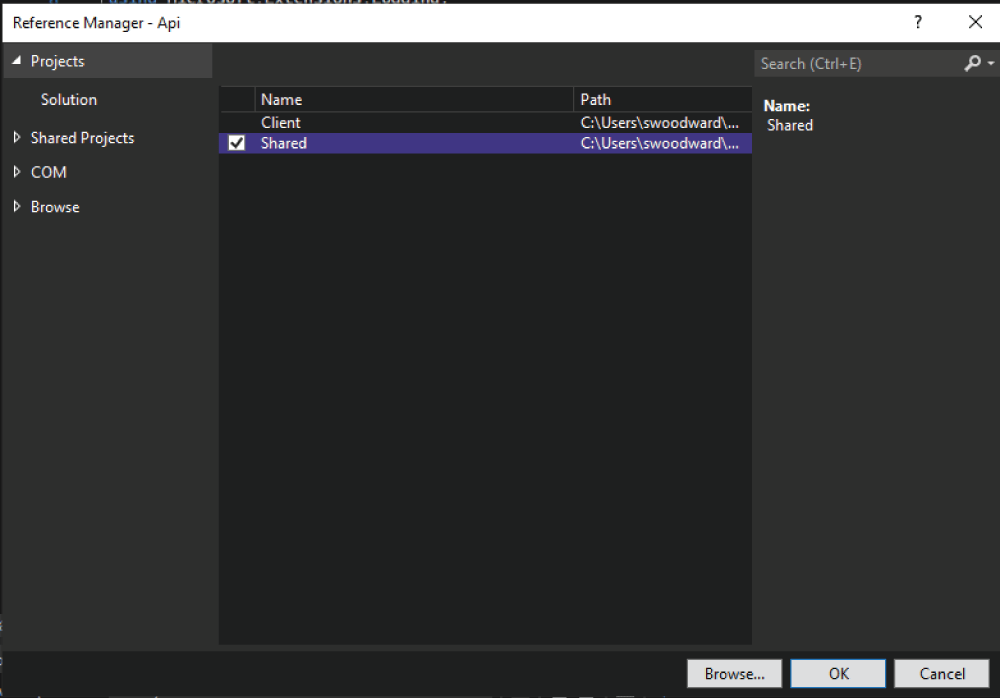

Add a Project reference to the Shared project.

Do a right-click on the Api project and select “New Azure Function”. Call it “Me”, and select that you want to create an “Http trigger”, and then click on Add.

Give it the following code

using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Azure.WebJobs;
using Microsoft.Azure.WebJobs.Extensions.Http;
using Microsoft.Extensions.Logging;
using Shared.Models;
using System;
using System.Text;
using System.Text.Json;

namespace Api
    public static class Me
        public static IActionResult Run(
            [HttpTrigger(AuthorizationLevel.Function, "get", "post", Route = null)] HttpRequest req,
            ILogger log)
            var myResponse = new ClientPrincipalResponse();

            var myClientPrincipal = GetClientPrincipal(req, log);

            if (myClientPrincipal.UserId is not null)
                myResponse.ClientPrincipal = myClientPrincipal;

            return new OkObjectResult(myResponse);

        private static ClientPrincipal GetClientPrincipal(HttpRequest req, ILogger log)
            var clientPrincipal = new ClientPrincipal();

            if (req.Headers.TryGetValue("x-ms-client-principal", out var header))
                var data = header[0];
                var decoded = Convert.FromBase64String(data);
                var json = Encoding.UTF8.GetString(decoded);
                clientPrincipal = JsonSerializer.Deserialize<ClientPrincipal>(json, new JsonSerializerOptions { PropertyNameCaseInsensitive = true });

            return clientPrincipal;

        private class ClientPrincipalResponse
            public ClientPrincipal ClientPrincipal { get; set; } = null;
In order for us to hit this end point with our cookies let’s create a new Me page and print out the response from this /api/me end point.

To the pages folder of the client add a new file called Me.razor

Give it the following code

@page "/me"

@inject HttpClient _httpClient;




@code {
    private string? responseText { get; set; }

    protected override async Task OnInitializedAsync()
        await base.OnInitializedAsync();

        var response = await _httpClient.GetStringAsync("/api/me");

        responseText = response;

Start up the debuggers and browse your application to the Me page with and without being logged in and you will see that you are getting similar results to the ./auth/me and point as the /api/me end point. With what is displayed here you can get any information that you need about the user to invoke any data protection policy necessary.

Please note that as of this reading the claims are actually missing from x-ms-client-principal. If you google search that situation, you will see that there are plenty of other people with that same situation and no work around is available (as of the time of this writing). However since there is at least the unique identifier for the user and their roles there are still many security policies that you can do. Unfortunately, claims-based ones, within the API is not possible. Claims based ones within the client are. Despite the fact that the documentation says that /.auth/me and x-ms-client-principal should contain the same information, they do not at this time, but close enough. Hopefully Microsoft will fix this in future releases of this product.

Commit and Merge Changes

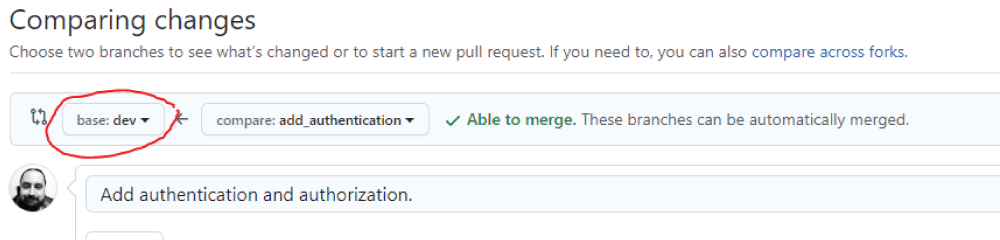

Ensure that all of the things work locally and then commit the changes using the Git Changes tab of Visual Studio. Push the changes, then create a pull request. Make the target of the pull request in this instance to the Dev branch instead of the Master branch. This way we are sure that we are only deploying to the Dev environment for now.

Confirm the pull request and delete your branch using the GitHub.com website.

Confirm the build and deploy works to the development slot.

Once the deploy is complete browse to the development environment by using the link in the Static Web Apps Resource, and the Environments tab from the Azure Portal.

Practice logging in and out and comparing the results of the Index page and the Me page.

If things work out the way that you would like them to. Merge the changes from Dev to Staging and from Dev to Production testing everything along the way.


Azure Static Web Apps is an exciting powerful technology that allows you to focus on code, rather than infrastructure. This is by far the easiest way to have the client and api in a mono repo with a code build, deploy set up with the fewest number of Azure resources that you need to manage.
